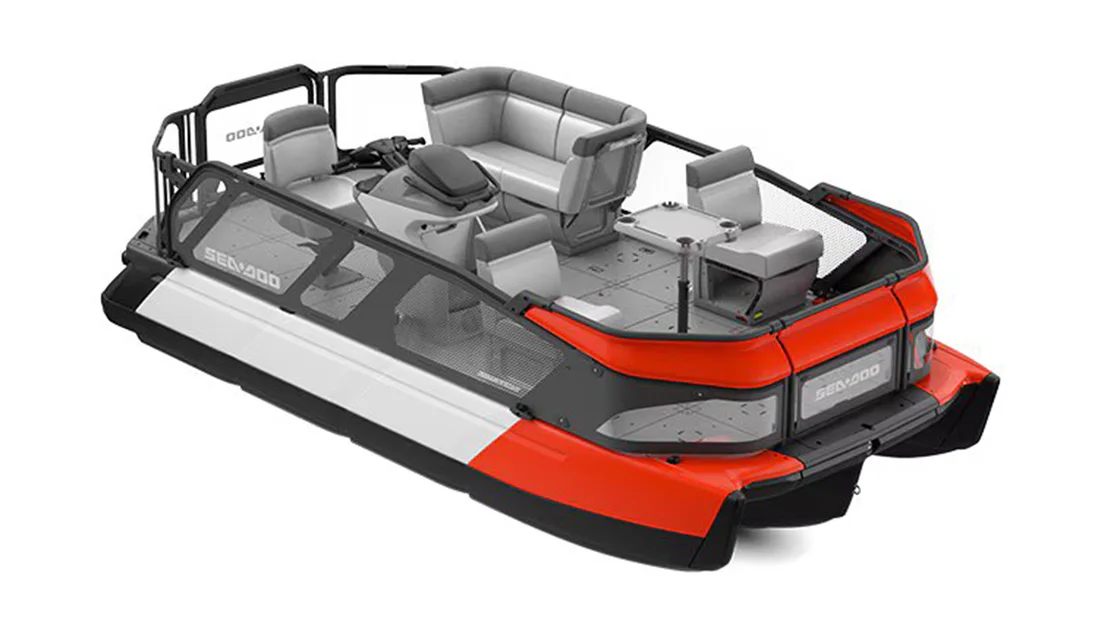

2025 Switch 16 - 130 HP

Specifications

• ENGINE

  add remove
  • Engine Model Code
    130 ECT
  • Engine Manufacturer
    Bombardier
  • Engine Brand Name
    Rotax®
  • Engine Trim
    1630 ACE 130 ECT
  • Engine Configuration
    Inboard
  • Engine Type
    In-Line
  • Number Of Engines
    1
  • Cylinders
    3
  • Engine Stroke
    4-Stroke
  • Horsepower (bhp)
    130
  • Cooling
    Liquid
  • Valves
    12
  • Valves Per Cylinder
    4
  • Valve Configuration
    SOHC
  • Bore (in)
    3.94
  • Stroke (in)
    2.72
  • Displacement (cc)
    1630
  • Turbocharged
    No
  • Supercharged
    No
  • Salt Water Capable
    Yes
  • Engine Alert System Type
    Visual
  • Emergency RPM Reduction
    Yes
  • Fuel Requirements
    Regular
  • Carburetion
    Standard
  • Fuel Injector
    Yes
  • Carburetor
    No
  • Carburetion Type
    Fuel Injected
• DRIVE LINE

  add remove
  • Propulsion Type
    Jet Drive
  • Jet Pump Type
    Axial Flow
  • Jet Pump Material
    Stainless Steel
  • Impeller Material
    Stainless Steel
• TECHNICAL SPECIFICATIONS

  add remove
  • Length (in)
    190.8
  • Beam (in)
    93.5
  • Draft (Drive Down) (in)
    18.3
  • Dry Weight (lbs)
    1965
  • Weight Capacity (lbs)
    1155
  • Number of Passengers
    8
  • Fuel Capacity (gal)
    29
  • Number Of Fresh Water Holding Tanks
    0
  • Total Fresh Water Tank Capacity (gal)
    0
  • Total Gray Water Tank Capacity (gal)
    0
  • Total Black Water Tank Capacity (gal)
    0
  • Number Of Water Ballast Tanks
    0
  • Total Water Ballast Tank Capacity (gal)
    0
  • Bridge Clearance (in)
    68
  • Min Recommended Horsepower (bhp)
    130
  • Max Recommended Horsepower (bhp)
    130
• STEERING

  add remove
  • Auto Pilot
    No
  • Outboard Steering Control
    Remote
  • Steering Assist System
    Yes
  • Exterior Steering Station
    Not Available
  • Joy Stick Docking System
    Not Available
  • Bow Thrusters
    Not Available
  • Stern Thruster
    Not Available
• INSTRUMENTATION

  add remove
  • Tachometer
    Optional
  • Compass
    Optional
  • Fuel Level Warning Type
    Gauge
  • Air Temperature Gauge
    Not Available
  • Fish Finder
    Optional
  • Digital Satellite System
    Not Available
  • Radar
    Not Available
  • Depth Indicator
    Optional
• Color options

  add remove
  • Lava Red
