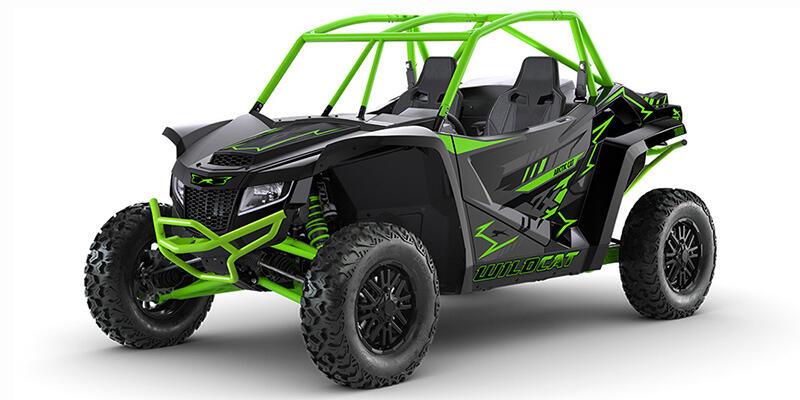

Wildcat XX Limited

Specifications

• ENGINE

  add remove
  • Engine Type
    In-Line
  • Cylinders
    3
  • Engine Stroke
    4-Stroke
  • Cooling
    Liquid
  • Valve Configuration
    DOHC
  • Displacement (cc)
    998
  • Fuel Requirements
    Regular
  • Fuel Injector
    Yes
  • Carburetor
    No
  • Carburetion Type
    Fuel Injected
  • Engine Brand Name
    Yamaha
  • Horsepower (bhp)
    130
• TRANSMISSION

  add remove
  • Transmission Type
    Continuously Variable (CVT)
  • Hi / Low Range
    Yes
  • Primary Drive (Rear Wheel)
    Shaft
  • Primary Drive (Engine / Transmission)
    Belt
  • Primary Drive (Front Wheel)
    Shaft
  • Reverse
    Yes
• DRIVE LINE

  add remove
  • Driveline Type
    Selectable 4X2 / 4X4
  • Number Of Driveline Modes
    3
  • Rear Unlocking Differential
    No
  • Rear Solid Axle
    No
  • Limited Slip Differential
    Not Available
  • Differential Lock
    Standard
  • Differential Lock Location
    Front
  • Other Drive Line
    Not Available
• TECHNICAL SPECIFICATIONS

  add remove
  • Width (in)
    64
  • Height (in)
    67.5
  • Wheelbase (in)
    95
  • Ground Clearance (in)
    15
  • Dry Weight (lbs)
    1816
  • Payload Capacity (lbs)
    730
  • Fuel Capacity (gal)
    9.8
  • Engine Displacement to Weight (cc)
    0.55
• SUSPENSION

  add remove
  • Front Suspension Type
    Double A-Arm
  • Front Travel (in)
    18
  • Front Adjustable Fork Pre-Load
    Yes
  • Rear Suspension Type
    Independent
  • Rear Suspension Material
    Steel
  • Rear Travel (in)
    18
  • Rear Adjustable Shock / Spring Pre-Load
    Yes
  • Number Rear Shock Absorbers
    2
  • Rear Stabilizer Bar
    Yes
  • Air Adjustable
    Yes
  • Adjustment Type
    Shock Mounted Adjustment
  • Front Suspension Brand Name
    Fox® 2.5 Podium
  • Rear Suspension Brand Name
    Fox® 2.5 Podium
  • Front Stabilizer Bar
    Yes
• WHEELS & TIRES

  add remove
  • Wheels Composition
    Aluminum
  • Front Tire Diameter (in)
    30
  • Rear Tire Diameter (in)
    30
  • Tires
    Standard
  • Tire Brand
    CST®
  • Tread Type
    All Terrain
  • Front Tire Width
    10
  • Front Wheel Diameter
    15
  • Rear Tire Width
    10
  • Rear Wheel Diameter
    15
  • Front Tire (Full Spec)
    CST® Behemoth AT 30 X 10-15
  • Rear Tire (Full Spec)
    CST® Behemoth AT 30 X 10-15
• BRAKES

  add remove
  • Front Brake Type
    Hydraulic Disc
  • Rear Brake Type
    Hydraulic Disc
  • Parking Brake
    Standard
  • Linked Brake System Front to Rear
    Not Available
  • Engine Braking
    Not Available
  • Regenerative Braking
    Not Available
  • Regenerative Deceleration
    Not Available
• Color options

  add remove
  • Black Magic
